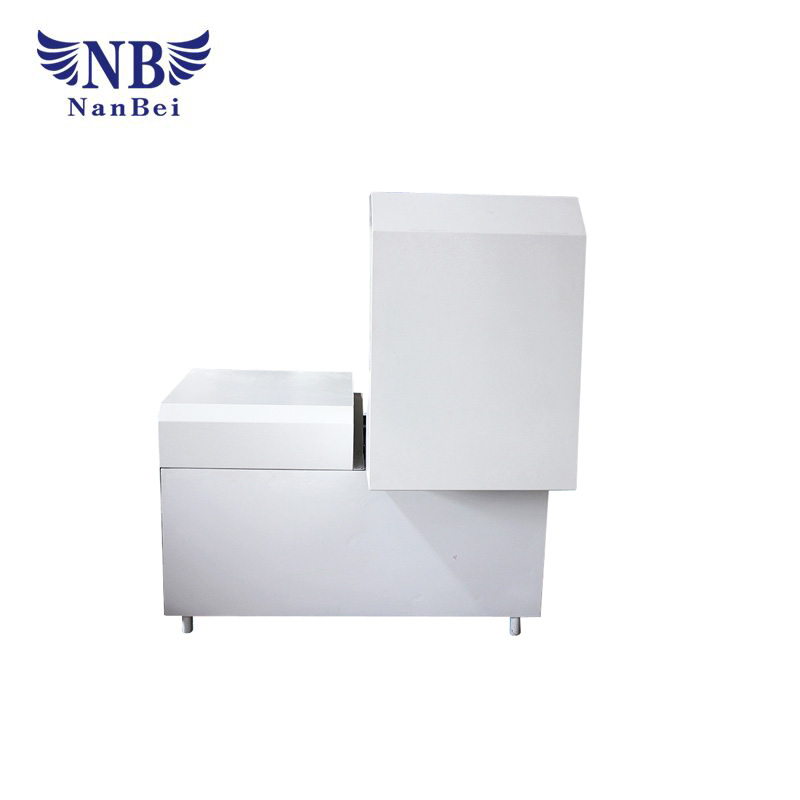

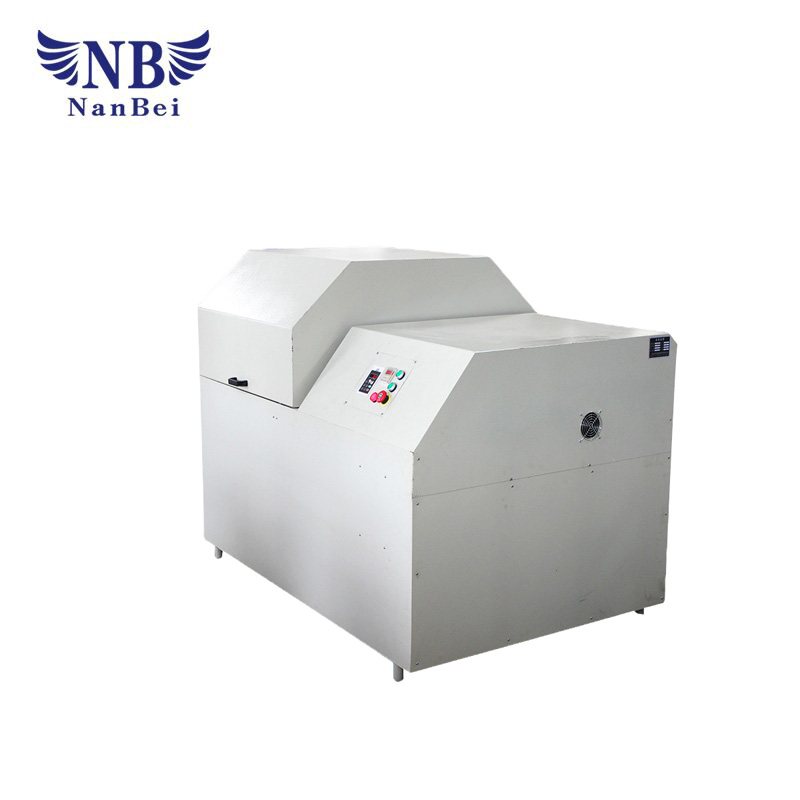

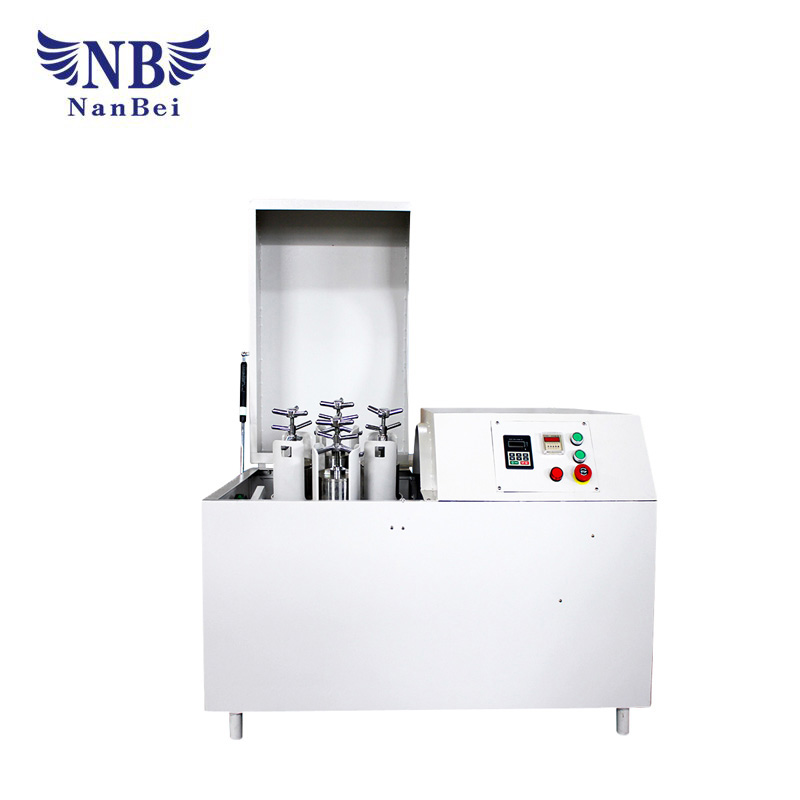

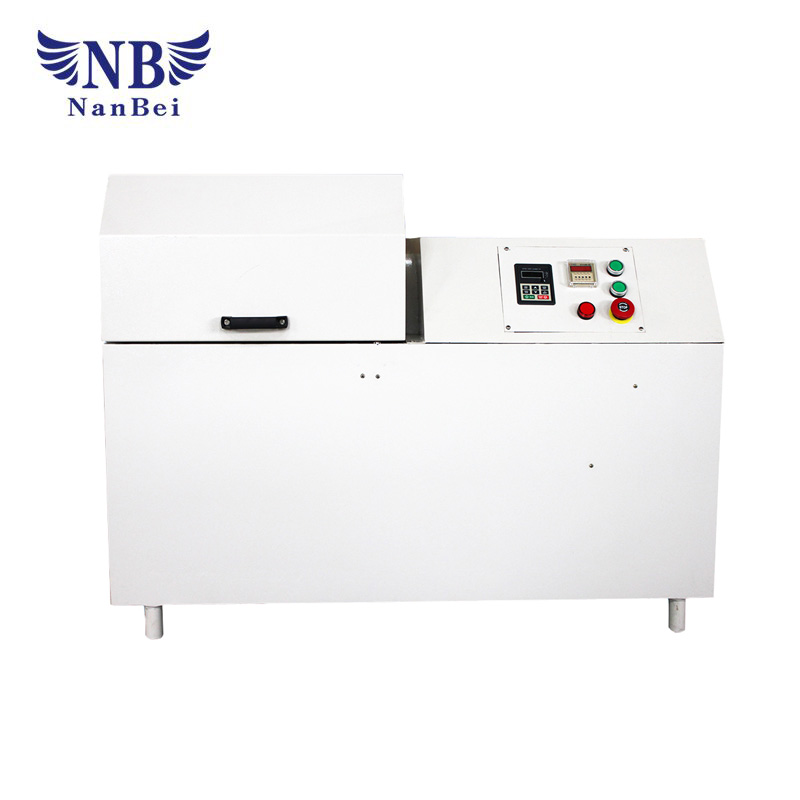

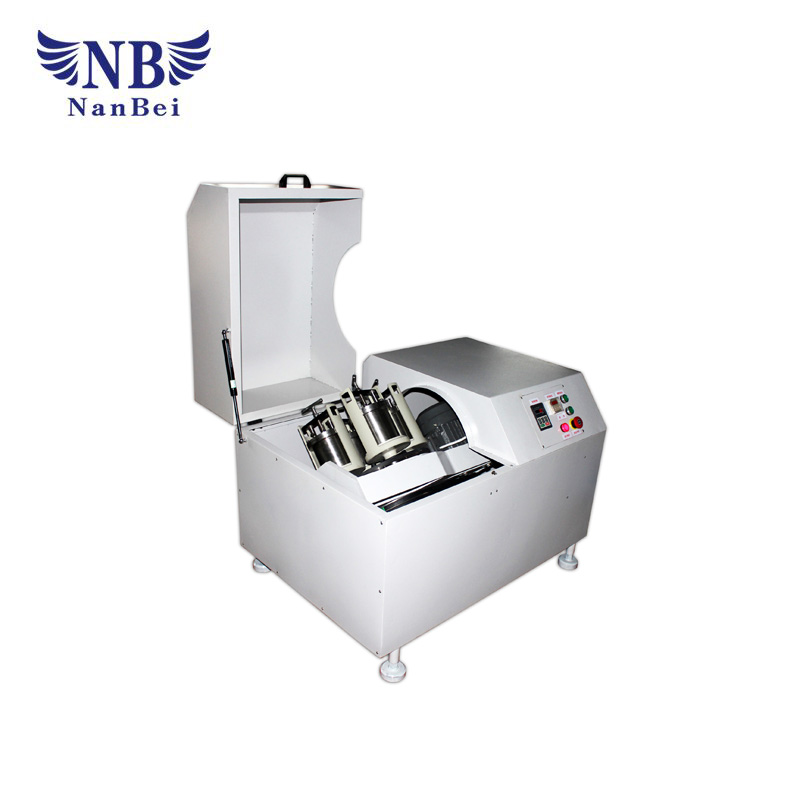

Lab Planetary Ball Mill Omnibearing for Sample Grinding

Description

QNXQM(1L -20L) lab planetary ball mill Brief Introduction of Lab planetary ball mill: QNXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis a

Send Inquiry

Description

QNXQM(1L -20L) lab planetary ball mill

Brief Introduction of Lab planetary ball mill:

QNXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

Working Principle of Lab planetary ball mill:

Features of Lab planetary ball mill:

1.The machine makes 360 degree planetary movement without any dead corner, so the ground powder is much smaller and more even

2. Gear transmission ensures to keep consistency and repeatability of experiment.

3. You may get four different powder samples at one time.

4. Variable frequency controlled and program controlled.

5. It solves the problems of materials sinking and sticking to the pot.

Advantages:

A wide range of powder can be ground by our planetary ball mill with different mill jars and balls, such as ore powder, fluorescent powder, glass powder, pigment powder and so on. Following are some powder samples for your reference.

Details:

Drive Mode						Gear drive and belt drive
Operate Mode						Two or four grinding tanks working together
Maximum Loading Capacity						2/3 of the capacity of milling tank
Feeding Size						Soil material≤10mm;Others≤3mm
Output Granularity						≥0.1μm
Rotational Speed Ratio						1:2
Max.Continuous Operating Time						72hours
Materials of Jar						stainless steel,agate,nylon,corundum,zirconia,Tungsh carbon etc
Optional modes of speed control						Frequency conveter and automatic timing control
Main Parameters of Full-Directional Planetary Ball mill
Type	Power (KW)	Voltage (V)	Dimension (mm)		Revolution Speed (rpm)		Rotation Speed (rpm)		Total Timing (min)	Alternating Run Time of Forward & Reversal Rotation (min)
QNXQM-0.4	0.75	220V-50Hz	1100750825		35-335		70-670		1-9999	1-999
QNXQM-1	0.75	220V-50Hz	1100750825		35-335		70-670		1-9999	1-999
QNXQM-2	0.75	220V-50Hz	1100750825		35-335		70-670		1-9999	1-999
QNXQM-4	0.75	220V-50Hz	1100750825		35-335		70-670		1-9999	1-999
QNXQM-6	0.75	220V-50Hz	1100750825		35-335		70-670		1-9999	1-999
QNXQM-8	1.5	220V-50Hz	1220900960		35-290		70-580		1-9999	1-999
QNXQM-10	1.5	220V-50Hz	1290900960		35-290		70-580		1-9999	1-999
QNXQM-12	1.5	220V-50Hz	1220900960		35-290		70-580		1-9999	1-999
QNXQM-16	3	380V-50Hz	153010701220		30-225		60-510		1-9999	1-999
QNXQM-20	4	380V-50Hz	170011001200		25-215		50-430		1-9999	1-999

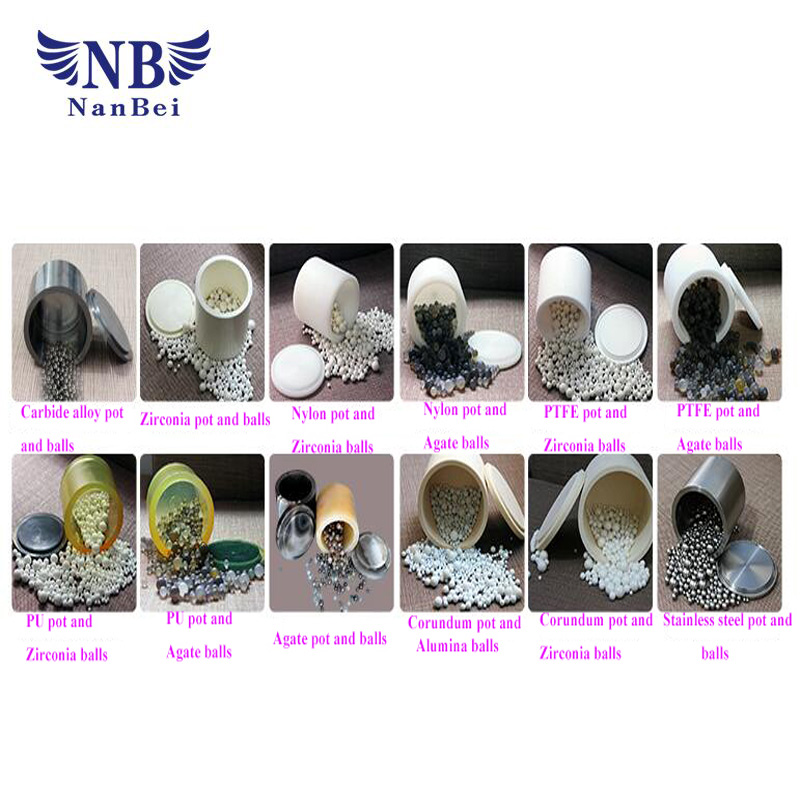

Grinding jars and balls
Material				Volume of Mill Jar				Diameter of Mill Ball (mm)
Stainless Steel				50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				1-30mm
Zirconia				50ml,100ml,250ml,500ml,1L,1.5L,2L,3L				1-30mm
Alumina				50ml,100ml,250ml,500ml,1L,1.5L,2L,3L				1-50mm
Tungsten Carbide				50ml,100ml,250ml,500ml,1L,1.5L				3-10mm
Agate				50ml,100ml,150ml,250ml,300ml,400ml,500ml,1L,1.5L,2L				6-35mm
Iron Core PU				\				15-30mm
Nylon				50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				\
PU				50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				\
PTFE				50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				\
