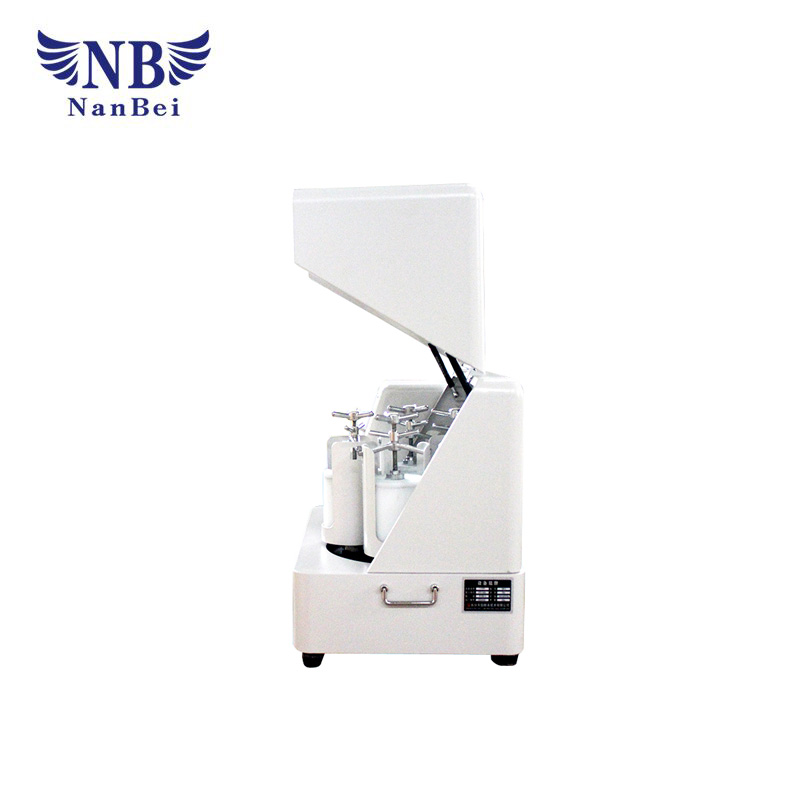

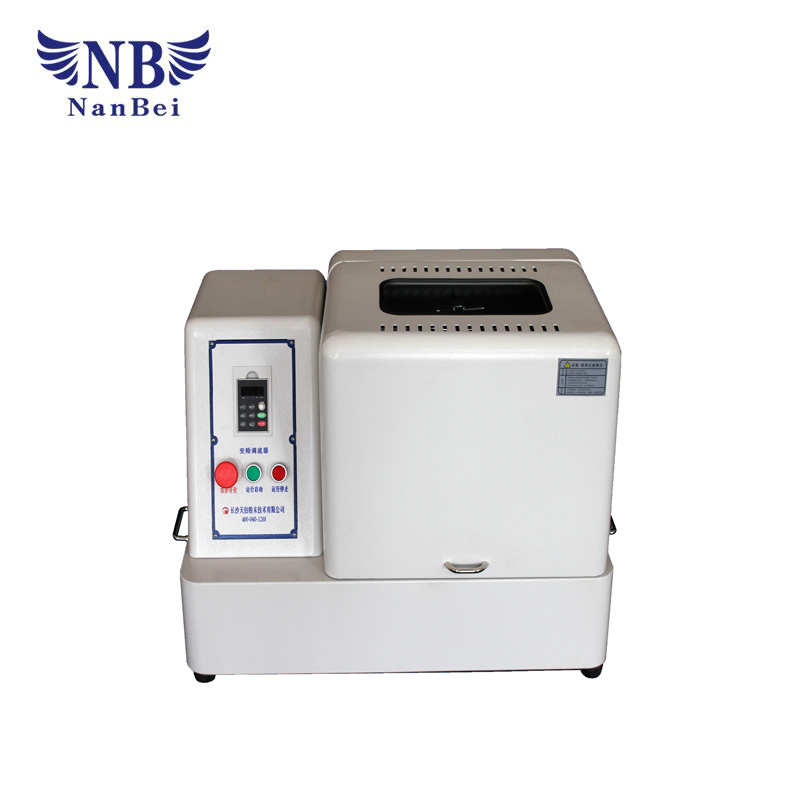

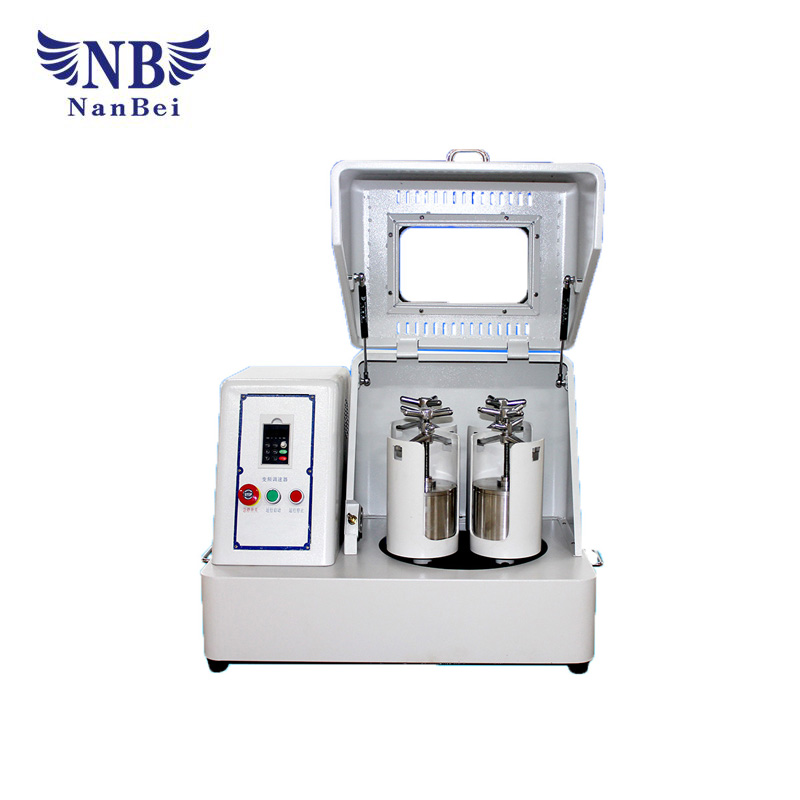

High Efficiency Vertical Planetary Ball Mill for Lab Use

Description

NNXQM(2L-12L) laboratory ball mill Brief Introduction of Laboratory ball mill : Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch producti

Send Inquiry

Description

NNXQM(2L-12L) laboratory ball mill

Brief Introduction of Laboratory ball mill :

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.

Working Principle of Laboratory ball mill

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1um.

Features of Laboratory ball mill:

1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.

2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.

3. Four powder samples from different sizes and different materials can be produced at one time.

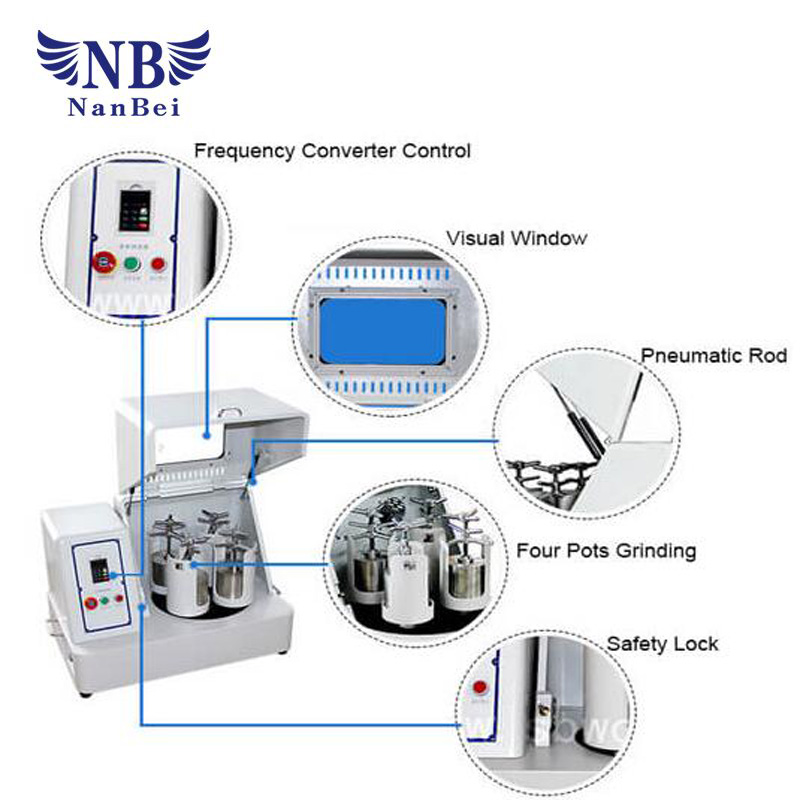

4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.

5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.

6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

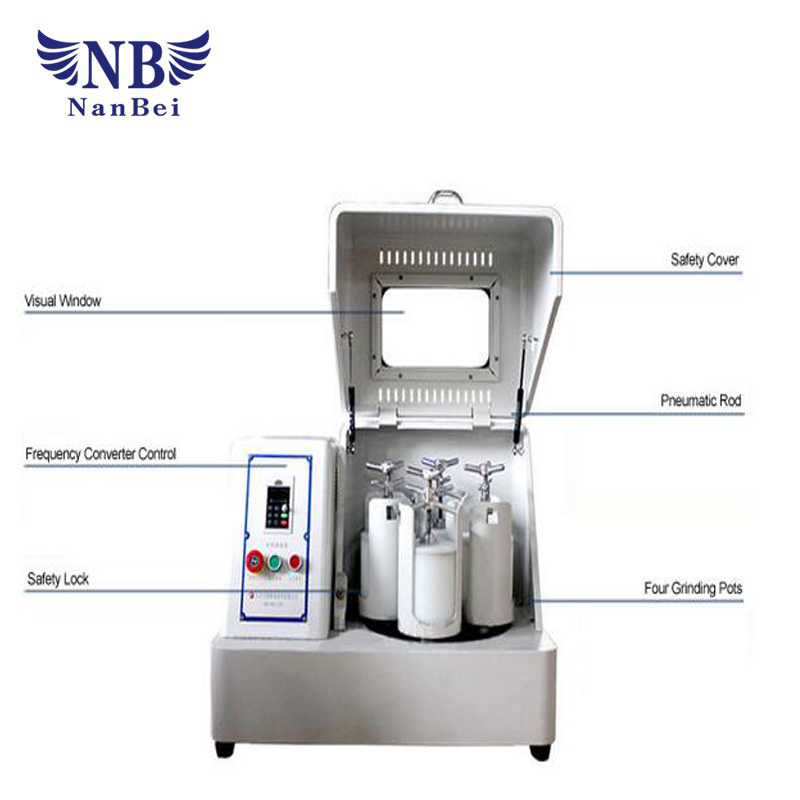

7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Technical Features of Vertical Planetary Ball Mill
Drive Mode					Gear drive and belt drive
Operate Mode					Two or four grinding tanks working together
Maximum Loading Capacity					2/3 of the capacity of milling tank
Feeding Size					Soil material≤3mm
Output Granularity					Smallest granule reaches 0.1μm
Rotational Speed Ratio					1:2
Max.Continuous Operating Time					72hours
Materials of Jar					stainless steel,agate,nylon,corundum,zirconia,Tungsh carbon etc
Optional modes of speed control					Frequency conveter and automatic timing control
Technical parameter
Model	NXQM-2	NXQM-4		NXQM-6		NXQM-8		NXQM-10	NXQM-12
Capacity	2	4		6		8		10	12
Jars capacity	50-500ml	250-1000ml		1-1.5L		1-2L		1-2.5L	1-3L
Jars quantity	2 or 4
Power	0.75					1.5
Voltage	220V-50Hz
Revolution Speed (rpm)	35-335					35-290
Rotation Speed (rpm)	70-670					70-580
Total Timing (min)	1-9999
Alternating Run Time of Forward & Reversal Rotation (min)	1-999
Noise≤db	60db
Net Weight (kg)	93					150
Dimension (mm)	750470564					900600640

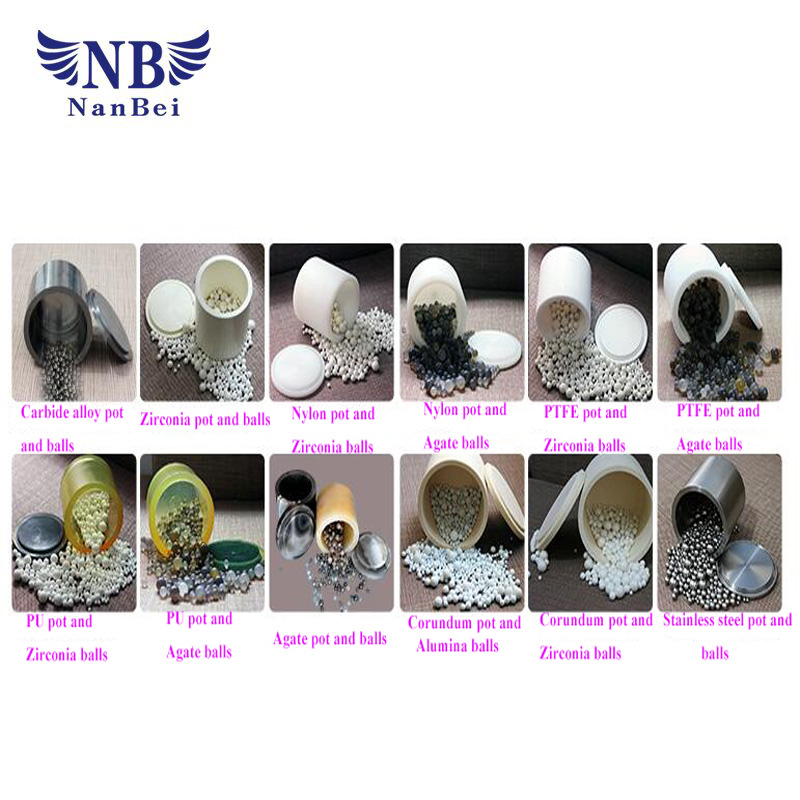

Grinding jars and ball
Material			Volume of Mill Jar				Diameter of Mill Ball (mm)
Stainless Steel			50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				1-30mm
Zirconia			50ml,100ml,250ml,500ml,1L,1.5L,2L,3L				1-30mm
Alumina			50ml,100ml,250ml,500ml,1L,1.5L,2L,3L				1-50mm
Tungsten Carbide			50ml,100ml,250ml,500ml,1L,1.5L				3-10mm
Agate			50ml,100ml,150ml,250ml,300ml,400ml,500ml,1L,1.5L,2L				6-35mm
Iron Core PU			\				15-30mm
Nylon			50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				\
PU			50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				\
PTFE			50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				\
