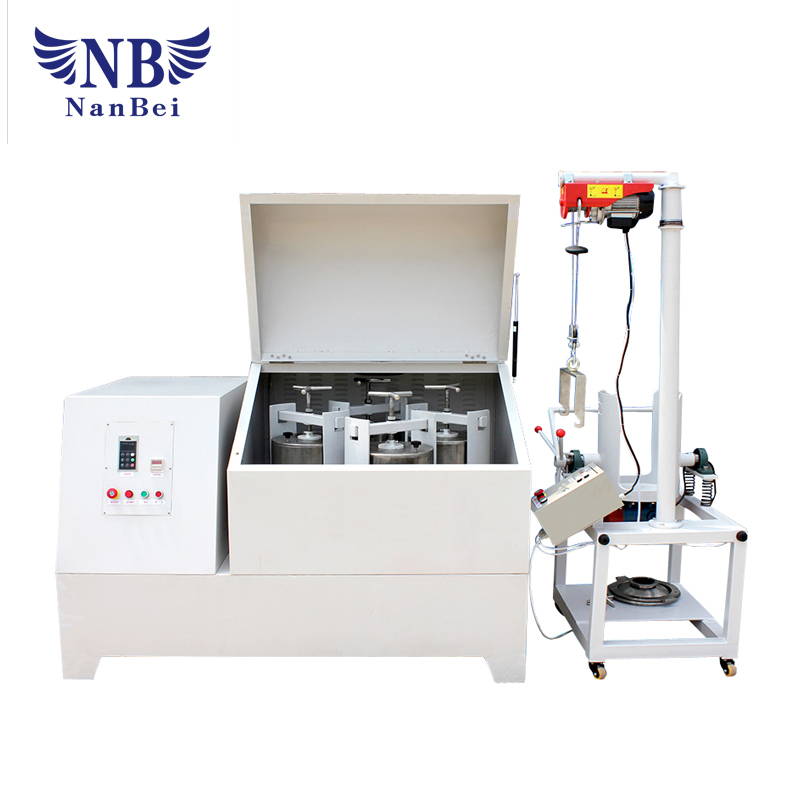

Horizontal Heavy-Duty Production Planetary Ball Mill Grinder

Description

WNXQM(8L-100L) horizontal planetary ball mill Brief Introduction of Horizontal planetary ball mill: WNXQM series planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes pl

Send Inquiry

Description

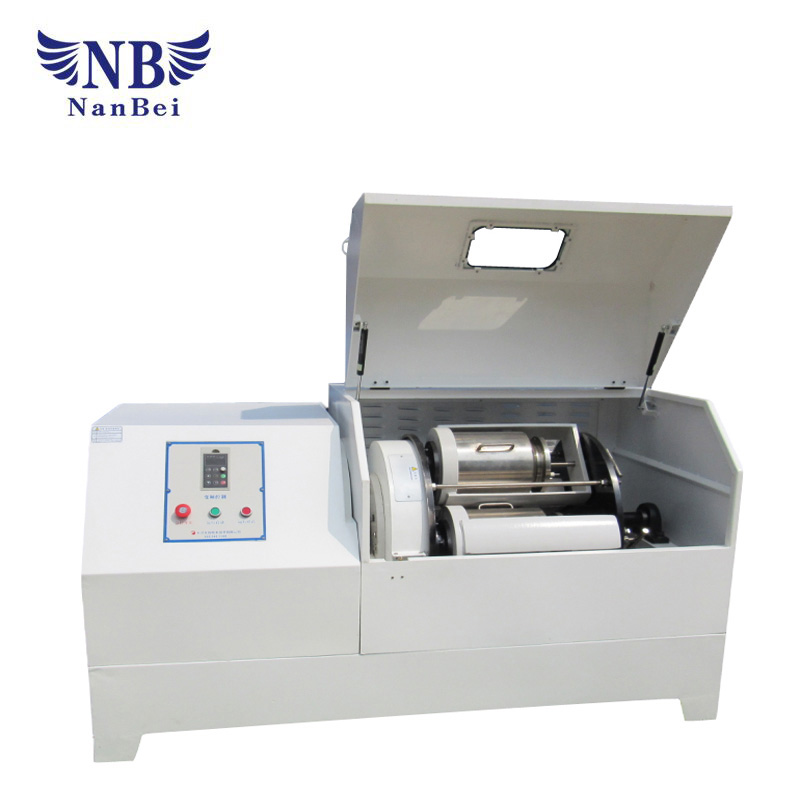

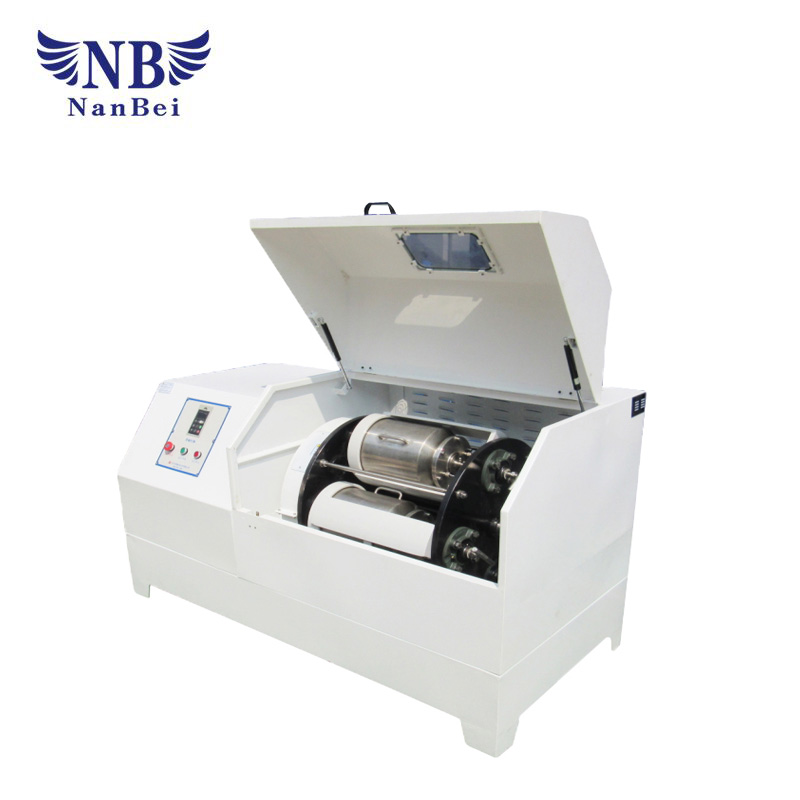

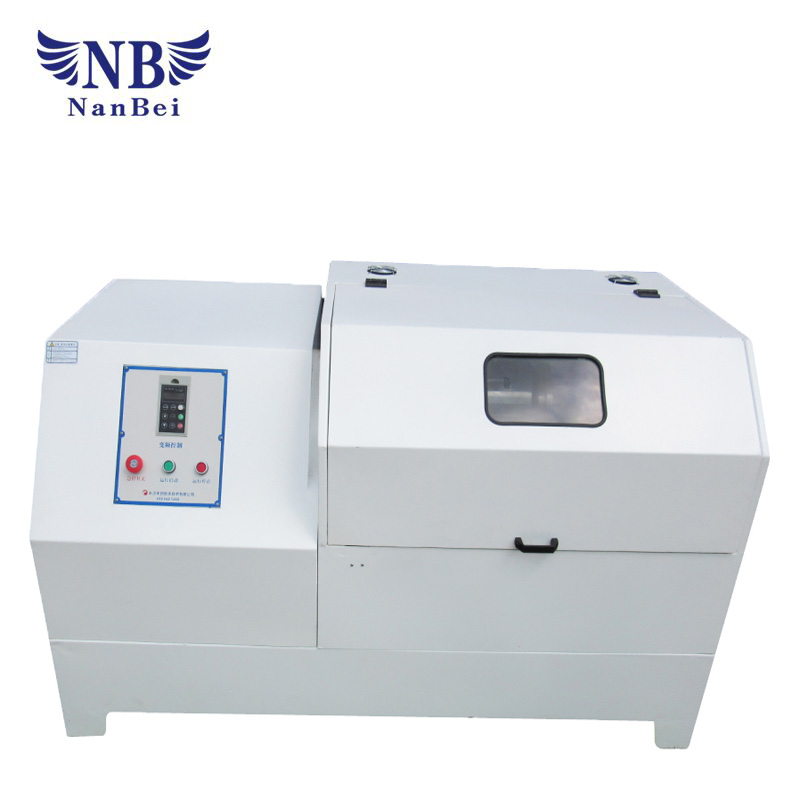

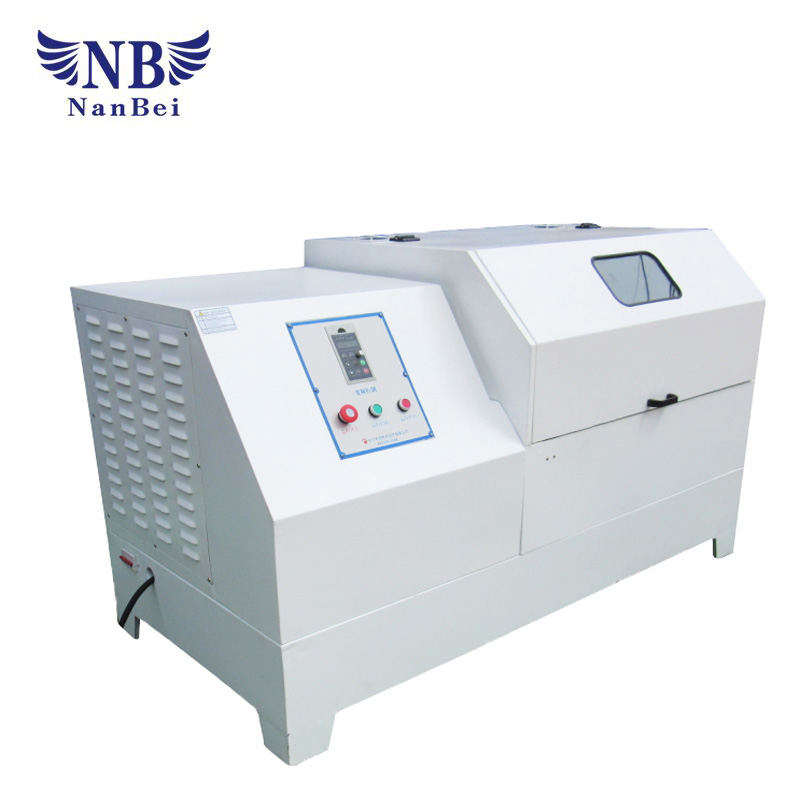

WNXQM(8L-100L) horizontal planetary ball mill

Brief Introduction of Horizontal planetary ball mill:

WNXQM series planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm).

Working Principle of Horizontal planetary ball mill:

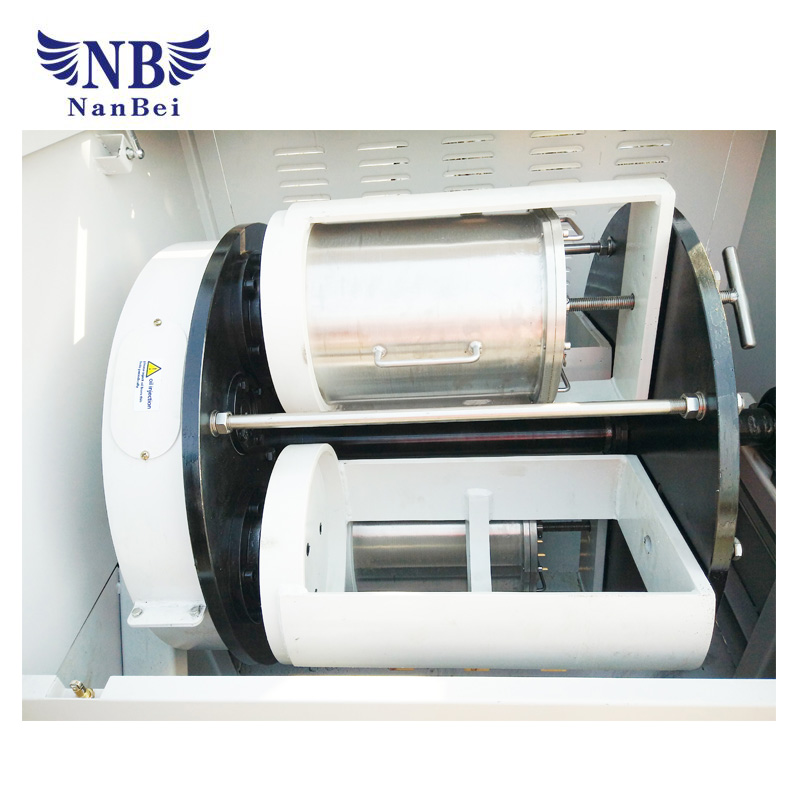

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. A variety of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1um.

Features of Horizontal planetary ball mill:

1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.

2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.

3. Four powder samples from different sizes and different materials can be produced at one time.

4. The machine is controlled by frequency converter; you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.

5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, and timing according to experimental needs so as to improve efficiency of grinding.

6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

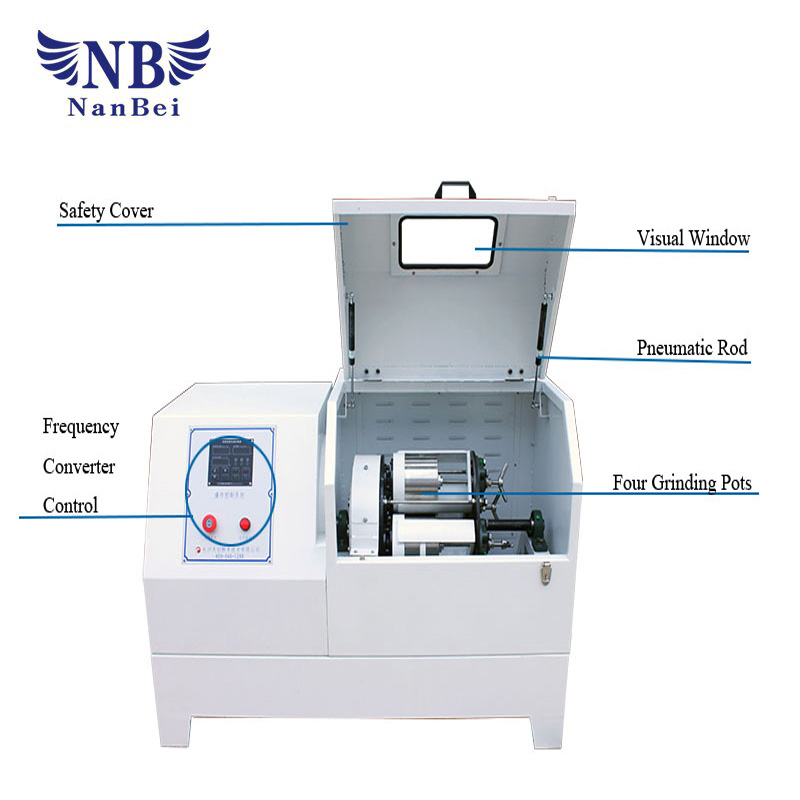

7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Grinding jars and balls

Besides the planetary ball mill machine, our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Details:

Drive Mode						Gear drive and belt drive
Operate Mode						2/4 grinding jars work together
Maximum Loading Capacity						2/3 of the capacity of milling tank
Feeding Size						Soil material≤10mm;Others≤ 3mm
Output Granularity						≥0.1μm
Rotational Speed Ratio						1:2
Max.Continuous Operating Time						72hours
Materials of Jars and balls						stainless steel,agate,nylon,corundum,zirconia,Tungsh carbon etc
Optional modes of speed control						Frequency conveter and automatic timing control
Parameters of Horizontal Planetary Ball Mill (Heavy Type)
Model No.	Power (kw)	Voltage	Dimension (mm)		Revolution Speed (rpm)		RotationSpeed (rpm)		Total Timing (min)	Alternating Run Time of Forward & Reversal Rotation (min)
WNXQM-8	1.5	220V-50Hz	1320670920		35-290		70-580		1-9999	1-999
WNXQM-10	1.5	220V-50Hz	1320670920		35-290		70-580		1-9999	1-999
WNXQM-12	1.5	220V-50Hz	1320670920		35-290		70-580		1-9999	1-999
WNXQM-16	3	380V-50Hz	1530750960		30-240		60-480		1-9999	1-999
WNXQM-20	4	380V-50Hz	16208401040		25-215		50-430		1-9999	1-999
WNXQM-40	5.5	380V-50Hz	17708601100		25-215		50-430		1-9999	1-999
WNXQM-60	7.5	380V-50Hz	186010501280		20-206		50-310		1-9999	1-999
WNXQM-80	11	380V-50Hz	210011501370		35-193		50-290		1-9999	1-999
WNXQM-100	11	380V-50Hz	210011501370		35-193		50-290		1-9999	1-999
Grinding jars and ball
Material				Volume of Mill Jar				Diameter of Mill Ball (mm)
Stainless Steel				50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				1-30mm
Zirconia				50ml,100ml,250ml,500ml,1L,1.5L,2L,3L				1-30mm
Alumina				50ml,100ml,250ml,500ml,1L,1.5L,2L,3L				1-50mm
Tungsten Carbide				50ml,100ml,250ml,500ml,1L,1.5L				3-10mm
Agate				50ml,100ml,150ml,250ml,300ml,400ml,500ml,1L,1.5L,2L				6-35mm
Iron Core PU				\				15-30mm
Nylon				50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				\
PU				50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				\
PTFE				50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L				\
